Architecture

High-Level Architecture

SimpleNS follows an event-driven, microservices-inspired architecture where each component has a specific responsibility. The system is built around the outbox pattern for reliability and uses Kafka for event streaming.

Core Principles

System Components

API Server

Responsibility: REST API for notification ingestion

Key Features:

• /api/notification - Send a single notification to a single recipient through multiple channels
• /api/notification/batch - Send the same notification to multiple recipients through multiple channels (max-limit per request configurable in (.env))
• Request validation using Zod schemas
• Bearer token authentication

Technology: Express.js, TypeScript

Scaling: Multiple instances behind load balancer

Data Flow:

Background Worker

Responsibility: Polls outbox, polls outbox_status, publishes to Kafka, updates status

Key Features:

• Polls MongoDB outbox table every 5 seconds (configurable)
• Publishes notifications from outbox collection to appropriate Kafka topics
• Consumes status updates from notification_status kafka topic
• Updates notification status in MongoDB
• Sends webhook callbacks
• Handles worker crashes via claim timeouts
• Polls MongoDB Outobx Status collection every 5 seconds (configurable) and publishes status to notification_status kafka topic. (Auto resolution of ghost deliveries)

Technology: Node.js, MongoDB, Kafka Producer/Consumer

Scaling: Multiple worker instances (distributed claiming prevents duplicates)

Data Flow:

Ghost Delivery and Permanently Failed Status Update Flow

Unified Notification Processor

Responsibility: Plugin-based notification delivery with rate limiting and automatic fallback

Key Features:

• Loads plugins from .plugins/ directory based on simplens.config.yaml
• Consumes from channel-specific Kafka topics
• Per-provider rate limiting (Token Bucket Algorithm)
• Exponential backoff retries (configurable, default: 5 attempts)
• Automatic fallback to secondary provider when default provider fails with non-retryable error
• Schema validation against fallback provider before attempting
• Idempotency using Redis cache
• Processing locks via Redis (TTL: 2 minutes)
• Publishes delivery status to notification_status topic

Technology: Node.js, Kafka Consumer, Redis, Plugin SDK

Scaling:

• Multiple processor instances per channel
• Kafka partition-based parallelism
• Can run channel-specific processors (e.g., only email)

Configuration:

PROCESSOR_CHANNEL=all  # or 'email', 'sms', etc.
MAX_RETRY_COUNT=5
PROCESSING_TTL_SECONDS=120

Fallback Provider Logic:

1. Try default provider for channel
2. If fails with non-retryable error, validate against fallback provider schema
3. If validation passes, try fallback provider
4. If fallback fails or both fail, mark as failed

Data Flow:

Delayed Processor

Responsibility: Handles scheduled notifications using two-phase commit

Key Features:

• Redis ZSET-based delay queue (score = Unix timestamp)
• Two-phase commit prevents message loss during crashes
• Polls every 1 second for due notifications (configurable)
• Fetches batch of due notifications (default: 10)
• Publishes to appropriate channel topics
• Handles poller failures with retries and exponential backoff

Two-Phase Commit Implementation:

1. Claim Phase: Atomically lock events for this worker using SET NX (prevents duplicate processing)
2. Process Phase: Publish to target Kafka topic
3. Confirm Phase: Remove from queue ONLY after successful publish

Technology: Node.js, Redis ZSET + Lua Scripts, Kafka Producer

Scaling: Multiple Delayed Processor instances (distributed claiming prevents duplicates)

Data Flow:

Recovery Service

Responsibility: Detects orphaned/stuck notifications and creates alerts

Key Features:

• Runs every 60 seconds (configurable)
• Detects notifications stuck in processing state (timeout: 5 minutes)
• Detects notifications stuck in pending state (timeout: 5 minutes)
• Creates alerts in MongoDB for manual intervention
• Cleanup of resolved alerts (retention: 24 hours)
• Cleanup of processed status outbox entries

Technology: Node.js, MongoDB, Cron-like polling

Scaling: Single instance (uses distributed locks for multi-instance support)

Alert Types:

• ghost_delivery - Status mismatch between Redis and MongoDB (notification delivered but status not updated)
• stuck_processing - Notification stuck in processing state beyond threshold
• orphaned_pending - Notification never picked up by processor

Data Flow:

Admin Dashboard

Responsibility: Web-based monitoring and management

Key Features:

• Dashboard home with statistics
• Events explorer with search and filtering
• Send page to send single and batch notifications from the admin dashboard
• Failed events page with retry capabilities
• Alerts management
• Analytics and charts
• Plugins registry view
• Payload Studio for API schema exploration
• Authentication via NextAuth

Technology: Next.js, React, MongoDB direct queries, shadcn/ui

Scaling: Multiple instances (stateless, session in cookies)

Pages:

• / - Dashboard home
• /events - All notifications
• /events/[id] - Notification details
• /send - Send notifications from admin dashboard
• /failed - Failed notifications
• /alerts - System alerts
• /analytics - Charts and graphs
• /plugins - Installed plugins
• /payload-studio - API schema builder

Infrastructure Components

MongoDB

Purpose: Persistent storage for notifications, outbox, alerts

Configuration:

• Replica set required (minimum 1 node for dev, 3 for production)
• Collections:
  • notifications - Notification documents
  • outbox - Outbox pattern entries
  • alerts - Recovery alerts
  • status_outbox - Status update outbox
• Indexes for performance on status, created_at, notification_id

Kafka

Purpose: Event streaming and message queue

Topics:

• {channel}_notification - Channel-specific (e.g., email_notification, sms_notification)
• delayed_notification - Scheduled notifications
• notification_status - Delivery status updates

Partitioning Strategy:

• Channel topics: Configurable partitions (env: {CHANNEL}_PARTITION)
• More partitions = more parallel consumers
• Partition by notification_id hash for ordering within same notification

Configuration:

EMAIL_PARTITION=5
SMS_PARTITION=3
DELAYED_PARTITION=1
NOTIFICATION_STATUS_PARTITION=1

Redis

Purpose: Caching, delay queue, rate limiting

Use Cases:

1. Delay Queue (ZSET)

ZADD delay_queue <scheduled_timestamp> <notification_json>

2. Idempotency Cache

SET idempotency:<notification_id> <result> EX 86400

3. Rate Limiting (Token Bucket)

HSET rate_limit:<provider_id> tokens <count> last_refill <timestamp>

4. Processing Locks

SET processing:<notification_id> <worker_id> EX 120

Loki + Grafana

Purpose: Centralized logging and visualization

Configuration:

• All services send logs to Loki via winston-loki
• Grafana datasource configured for Loki
• Labels: service, level, notification_id
• Query examples:

{service="api"}
{service="notification-processor", level="error"}
{notification_id="abc123"}

Data Flow

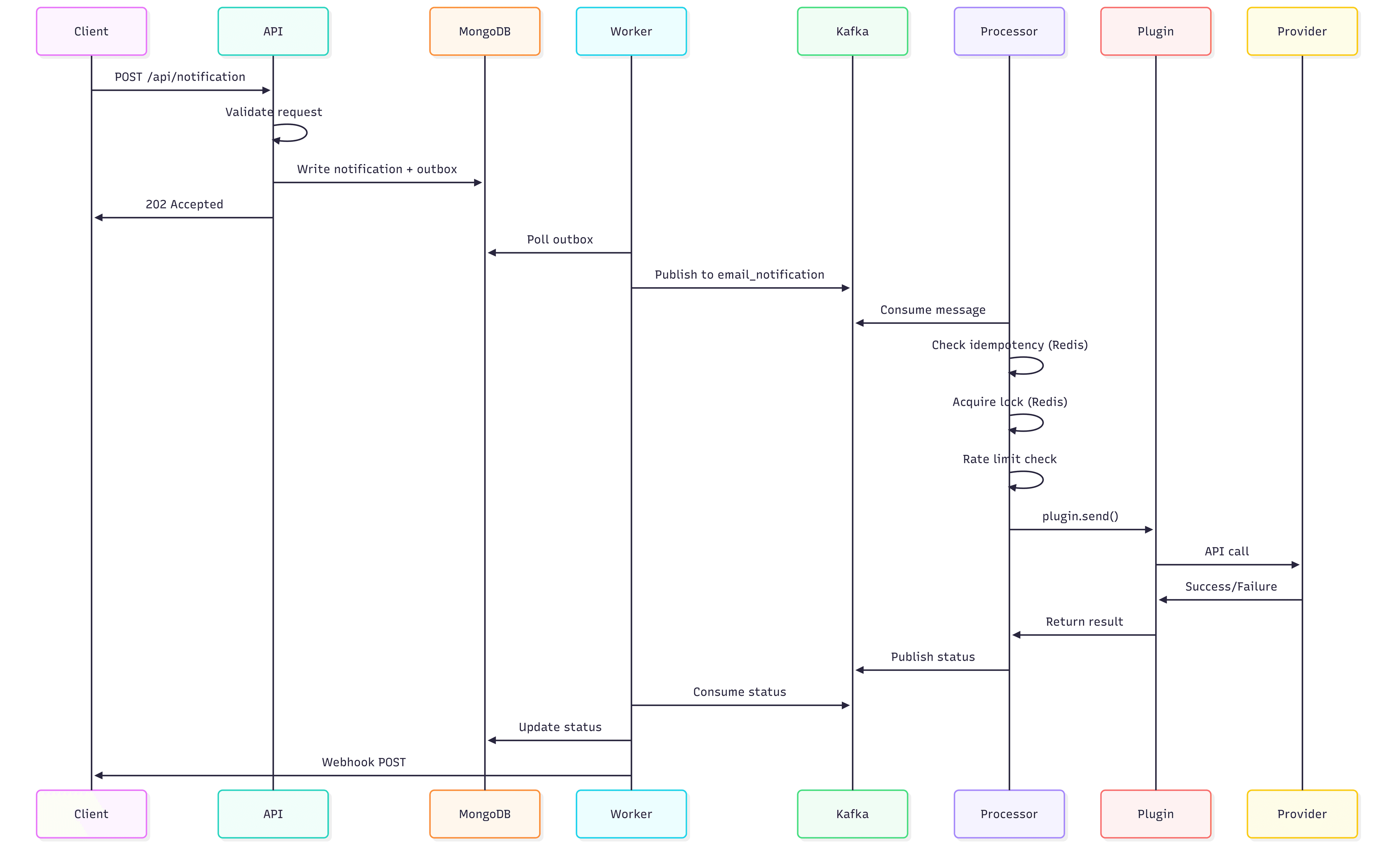

Immediate Notification Flow

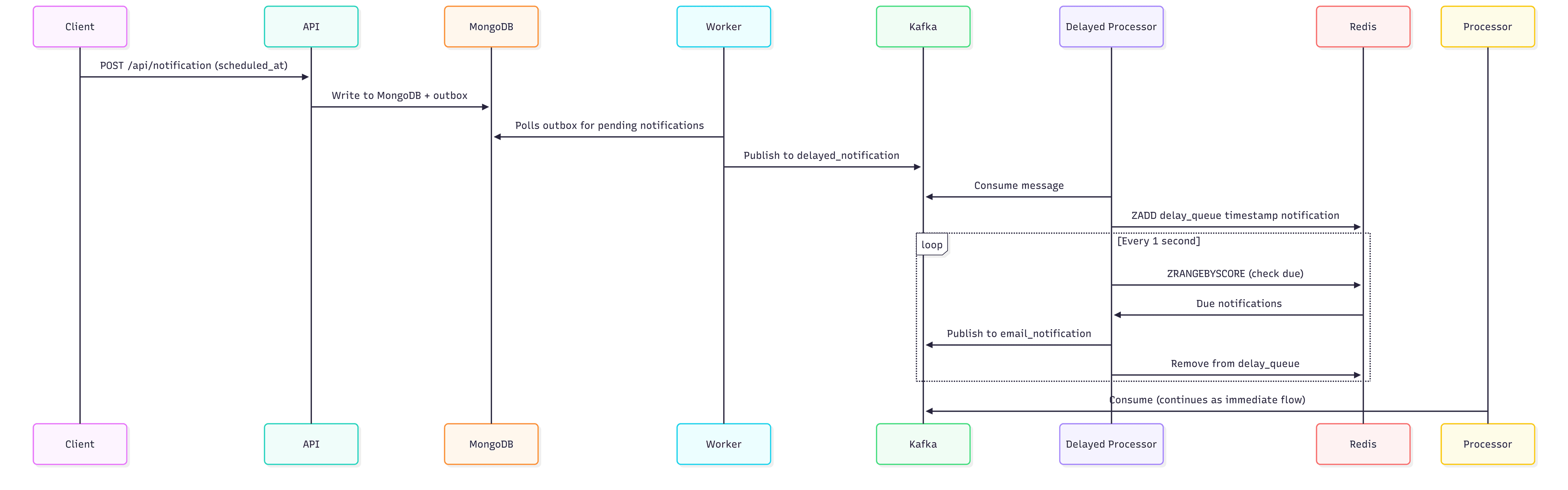

Scheduled Notification Flow

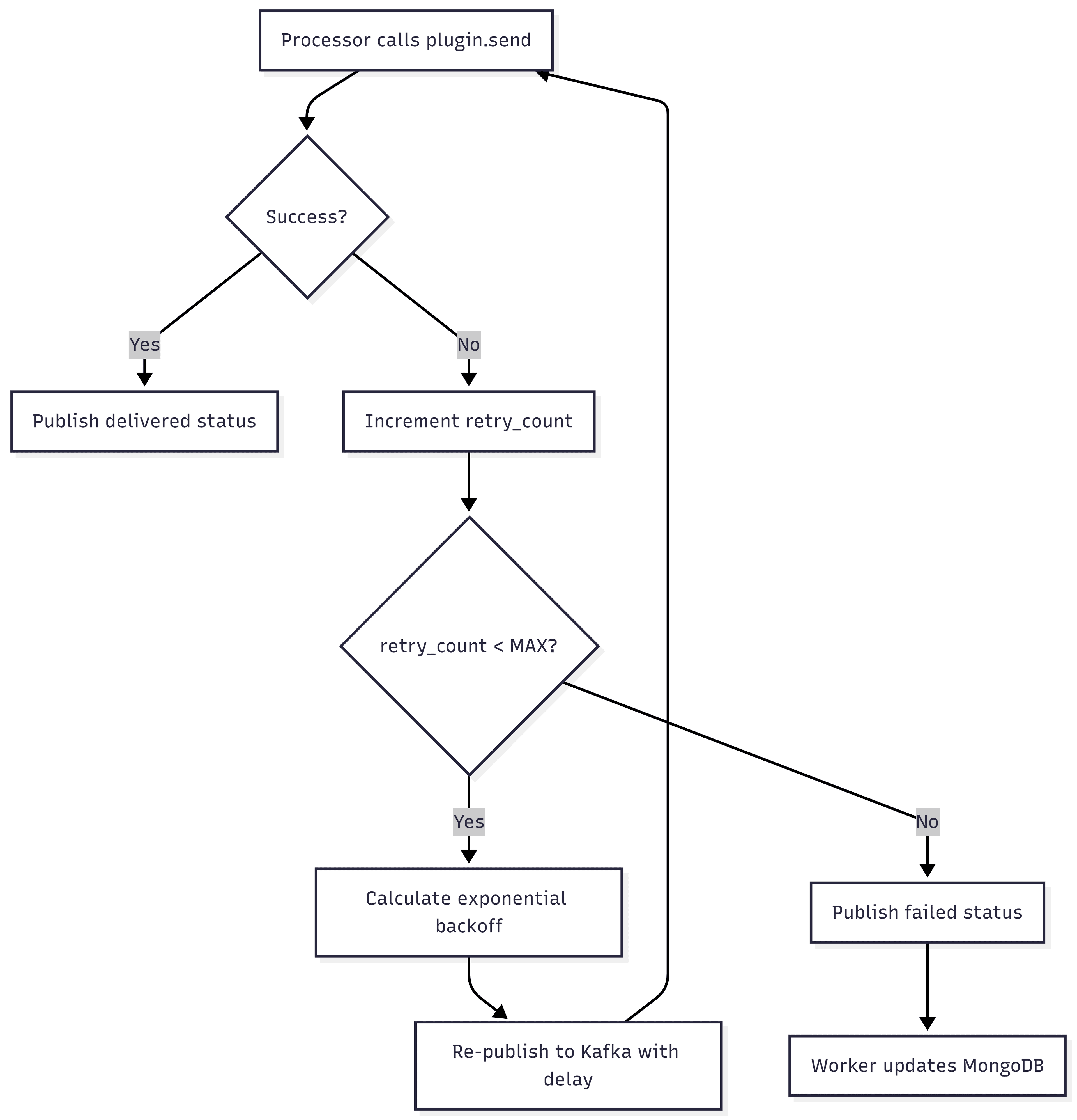

Retry Flow

Recovery Flow

Scalability Model

Horizontal Scaling

API Server

• Run multiple instances behind load balancer (NGINX, ALB)
• Stateless (no in-memory session)
• Share same MongoDB and Kafka

Background Worker

• Multiple instances supported
• Distributed claiming via MongoDB (worker_id + claimed_at)
• Claim timeout handles crashed workers

Notification Processor

• Scale independently per channel
• Kafka consumer group ensures no duplicate processing
• Increase instances to reduce consumer lag

Delayed Processor

• Typically 1-2 instances
• Redis atomic operations prevent duplicates
• Low CPU usage, minimal scaling needed

Scaling Guidelines

Metric: Kafka Consumer Lag

# Check in Kafka UI or CLI
kafka-consumer-groups.sh --bootstrap-server localhost:9092 \
  --describe --group notification-processor-email

Action: Scale up if lag > 1000

docker-compose up -d --scale notification-processor=5

Increase Kafka Partitions:

# Update .env
EMAIL_PARTITION=10

# Use kafka-topics.sh to add partitions
bin/kafka-topics.sh --bootstrap-server <broker_host>:<port> --topic <topic_name> --alter --partitions <new_total_number>

Processor per Channel:

# Instead of PROCESSOR_CHANNEL=all
# Run separate processors:
PROCESSOR_CHANNEL=email #update in .env
docker-compose up -d notification-processor

Performance Considerations
